Product Introduction:

CReader 3001 provides full OBDII/EOBD diagnostic functions and meets protocols such as ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4.

Engine Check Including:

1,Read code 2,Remove code 3,Live data 4,Freeze frame 5,I/M readness 6,Freeze prame 7,O2 sensor test

8.On-Board Monitor 9,EVAP system 10.Vehicle Information reading

Supported Language: English , French , Russian , Spanish ,German, Italian ,Portuguese

How to change language

creader 3001

Support OBD 2 protocols car : (must be OBD2 porotocols car )

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

Support car models for OBDII diagnostic function:

American Car :

Need Standard OBD2 Cars from 2000 to now

for Chrysler , for Ford, for GM, For Jeep ...

European Car :

Need Standard OBD2 Cars from 2003 to now

For Alfa romeo , for SAAB ,for Acura , for Opel , for Audi for Seat , for Peugeot , for Renault

For Bentley , for Skoda , for Daewoo , for Benz , for Daihatsu , for Land Rover , for BMW , for Vauxhall , for Citroen , for Volvo , for Fiat , for VW , for Ford , for Jaguar...

Japanese Car:

Need Standard OBD2 Cars from 2006 to now

for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai , for Dacia , for Lexus , for Mazda, for Nissan, for Subaru , for Suzuki, for Toyota...

Chinese Car:

Need Standard OBD2 Cars from 2009 to now

NOTE: Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is spercial design, so it may not compatible with some cars which do not support OBD2 protocol

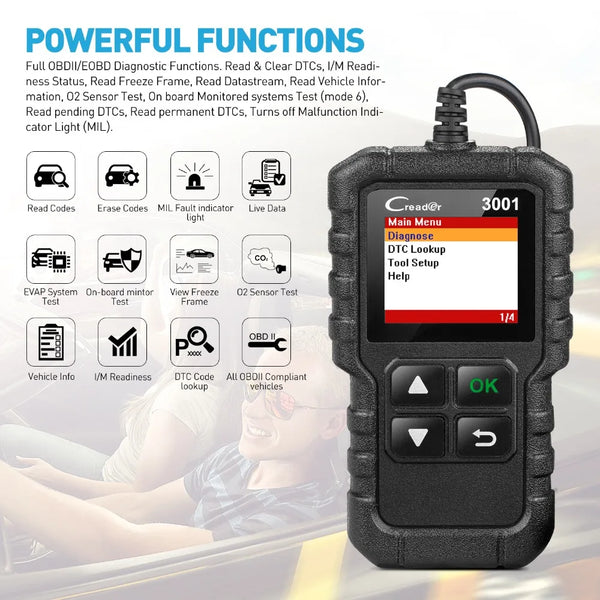

Powerful Function

POWERFUL-FUNCTIONS

Screen Display

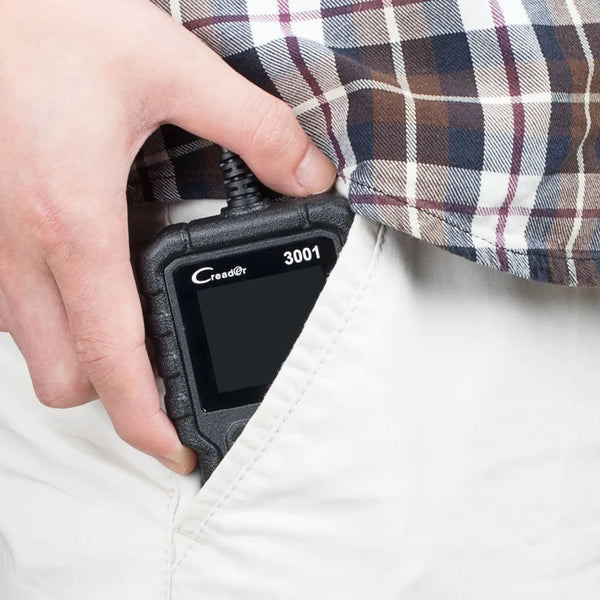

Easy to Carry

The OBD2 scanner's mini size fits comfortably in the palm of your hand. so that you can carry it around no matter in garage or on a trip.

USER-FRIENDLY

Dust Cap Design : protect the connector from dust, water, resistant oil and dirtly , no worries while you don’t use it .

Specifications:

Screen: 1.77 " TFT, 160*128dpi

Voltage Range: 9-18V

Operating Temperature :0℃ -50 ℃ (32 ℉ -122 ℉ )

Environment Temperature:-20 ℃ -70 ℃ (-4 ℉ -158 ℉ )

Dimension :118mm*68mm*22.3mm(4.65" *2.68 " *0.88 " )

Weight:<200g

X431 Creader 3001 Full OBD2 OBDII Code Reader Scan tools OBD 2 CR3001 Car Diagnostic tool PK AD310 NL100 OM123 Scanner
